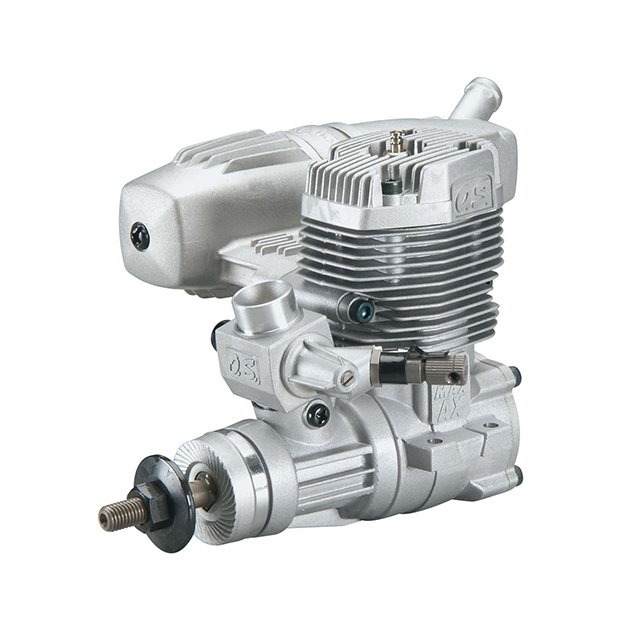

OS MAX-55AX 飛機用引擎

單價: $4600

$4300

商品規格
購買數量
付款方式
  • ATM 轉帳 / 貨到付款
運送方式
  • 宅配 / 宅配貨到付款

商品規格

排氣量 8.93cc
缸徑 23.0mm (0.906in.)
活塞行程 21.5mm(0.846in.)
實用轉速 R.P.M. 2,000-17,000r.p.m.
輸出功率 (BHP/RPM) 1.7ps/16,000r.p.m.
重量 (g/oz) 404g (14.25oz.)



TWO-STROKE ENGINES DIA X PITCH
  Running-in Trainer / Sport
10LA 7x4 7x3-5,8x4
15LA 8x4 7x5-6,8x4-5
25LA 9x5 9x5-6
40LA 11x5 10x6-7,10.5x6,11x5-6
46LA 11x6 11x6-7
65LA 12x6 12x7-8,13x6-8
  Running-in Aerobatic / Sport
15LA-S 8x4 8x4-6
25LA-S 9x6 9x6,10x5
40LA-S 11x5 11x5-6
46LA-S 11x6 11x6-7,12x5-6
  Sport Aerobatic
15CV-A 7x5-6,8x4-6,9x4 ____-
25FX 9x5-6,9.5x5,10x5 9x6,9.5x5
32SX 10x6,10.5x5,11x6 9x7-8,10x6
35AX 10x6-7,11x6,12x6 ____-
40FX 10x6,10.5x6,11x6-7 ____-
46AX 10.5x6,11x6-8,12x6-7 ____-
50SX RING 11x7-9 12x7-9
55AX 12×7-8,13×6-7 ____-
55AX-BE 12×7-8,13×6-7 ____-
61FX 12x6-8,13x6-7 12x9-11
(tuned silencer used)
75AX 13x8-10,14x6-8 ____-
75AX-BE 13x9-10,14x6-8,15x6 ____-
91FX RING 15x8,16x6-8,17x6,
14x7(3blade)
13x11-13,14x10-11
108FSR RING(RN)(BX-1) 14x8,15x6-8,16x6,18x6 ____-
120AX RING 15x10-12,16x8-10 ____-
120AX RING-BE 15x10-12,16x8-10 ____-
140RX / 140RX-FI ____- 16x14,17x13
160FX RING 15x13-14,16x12-14,
17x12-13,18x8-10,20x8
____-
160FX-FI 17x10-13,18x10-12 ____-
BGX-1 RING(RN) 18x10-12,20x8-10 18x10-12,20x8-10
